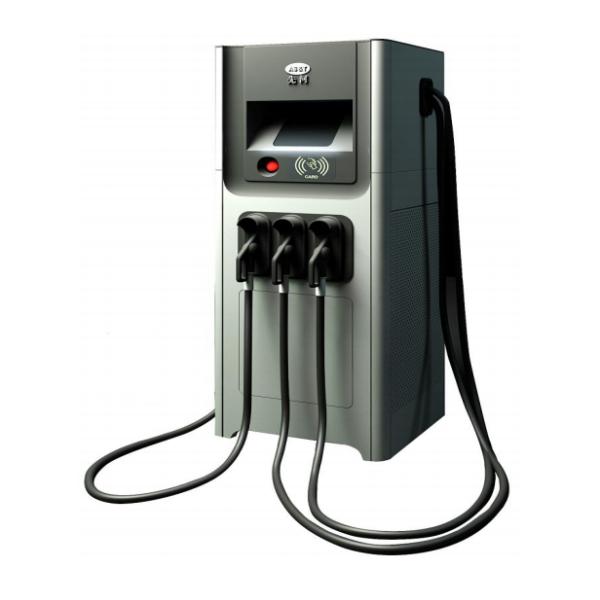

TUV Commercial EV DC Charging Station 60kW CCS CHAdeMo 9'' Touch Screen

Product Categories

Chengdu Honors Technology Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : ANS

Model Number : ANS-DCT-60kW

Certification : TUV, CE

Place of Origin : China

MOQ : 1pc

Price : USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10pcs one day

Delivery Time : 30days

Packaging Details : standard export package

Name : DC Charging Station

Charging interface : CCS, CHAdeMO and AC control pilot

Charge Point Protocal : OCPP1.6 / OCPP2.0

Enclosure Protection againstExt ernal Mechanical Impacts : IK10 according to IEC 62262

User authentication : Paypal and (or) NFC card

Network interface : Ethernet (standard); Wi-Fi, 4G (optional)

Display : 9” touch screen

Support language : English (Other languages available upon request)

Output power : DC: 60kW AC: 22kW

Output rating : 200V-750V DC

Contact Now

DC Charging Station 60kW with CCS & CHAdeMo & AC Charger Commercial Charge Point

TUV Commercial EV DC Charging Station 60kW CCS CHAdeMo 9'' Touch Screen

CCS, CHAdeMO and AC control pilot charging standard compliant

CCS and CHAdeMO output max. 60kW; AC output max. 22kW

OCPP integration

Remote diagnostics, repair and updates

Easily connect to Charging points Management System

Compact design

Item Number 3P60K-AD3-100A-EU01 3P60K-AD3-80A-EU02
Power input	Input rating	400V 3ph 125A max.	400V 3ph 125A max.
	Number of phase / wire	3ph / L1, L2, L3, PE
	Power factor	>0.98
	Current THD	<5%
	Efficiency	>95%
Power output	Output power	DC: 60kW AC: 22kW	DC: 60kW AC: 22kW
		Remark: only one gun is available in a charging session.
	Output rating	200V-750V DC	200V-1000V DC
Protection	Protection	Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Ov er temperature, Ground fault
User interface & c ontrol	Display	9” touch screen
	Support language	English (Other languages available upon request)
	Charge option	Charge options to be provided upon request: Charge by duration, Charge by energy, Charge b y fee
	Charging interface	CCS2 / CHAdeMO / Control pilot
	User authentication	Paypal and (or) NFC card
Communication	Network interface	Ethernet (standard); Wi-Fi, 4G (optional)
	Open Charge Point Protocal	OCPP1.6 / OCPP2.0
Environmental	Operating temperature	minus 20 ℃to+55℃ (derating when over 55℃)
	Storage temperature	-40 ℃to+70℃
	Humidity	< 95% relative humidity, non-condensing
	Altitude	Up to 2000 m (6000 feet)
Mechanical	Ingress protection	IP54
	Enclosure Protection againstExt ernal Mechanical Impacts	IK10 according to IEC 62262
	Cooling	Forced air
	Charging cable length	5m
	Dimension (WDH) mm	7007501750	7007501750
	Weight	280kg	300kg
Regulation	Certificate / Compliance	CE / EN 61851-1/-23
